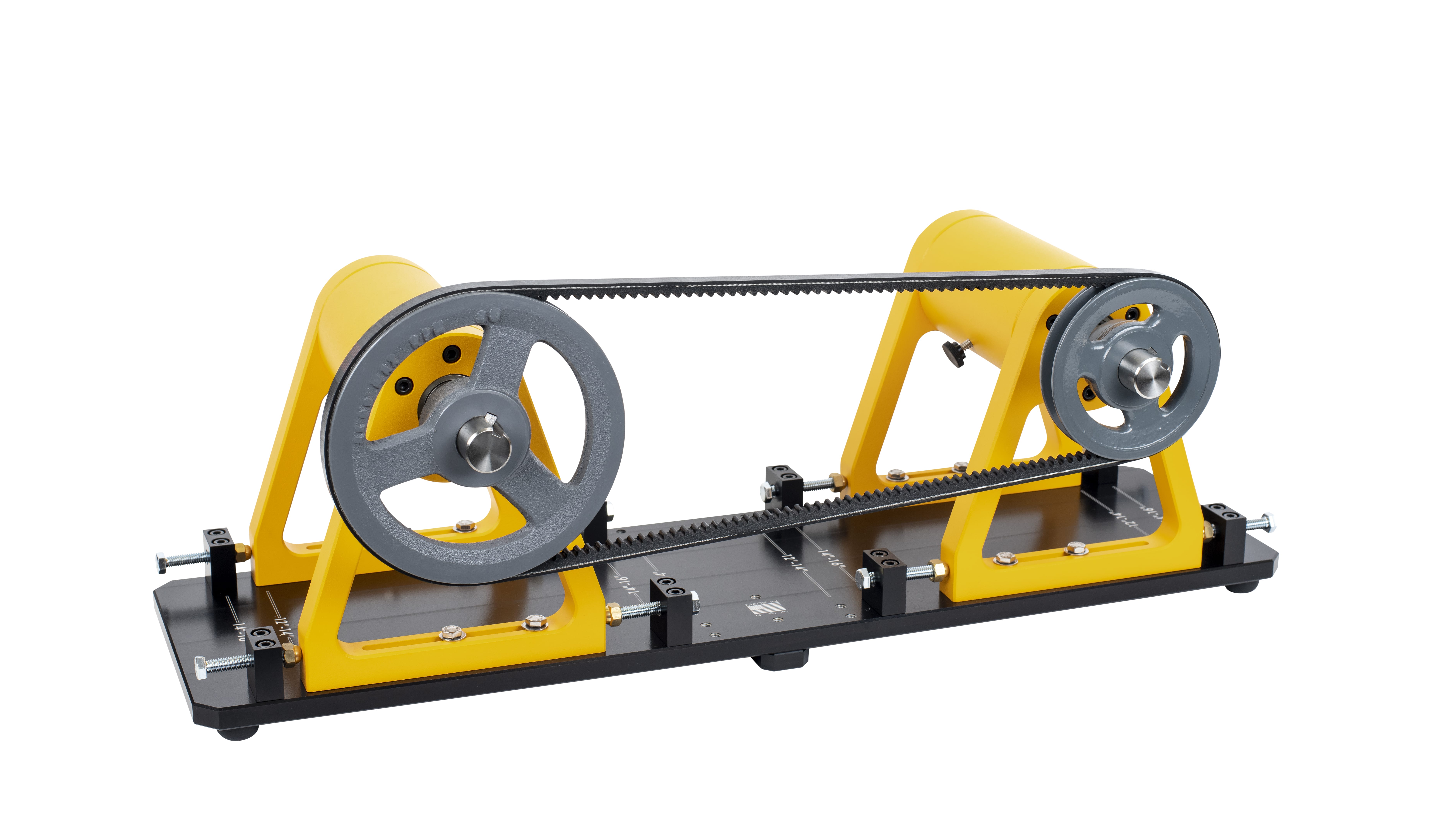

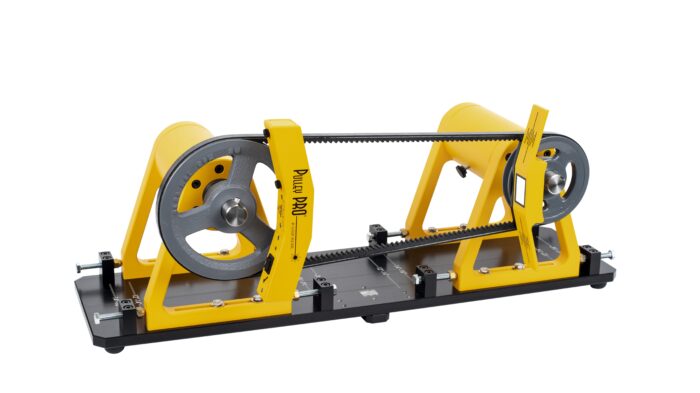

Belt Alignment Simulator KX-6550-ST

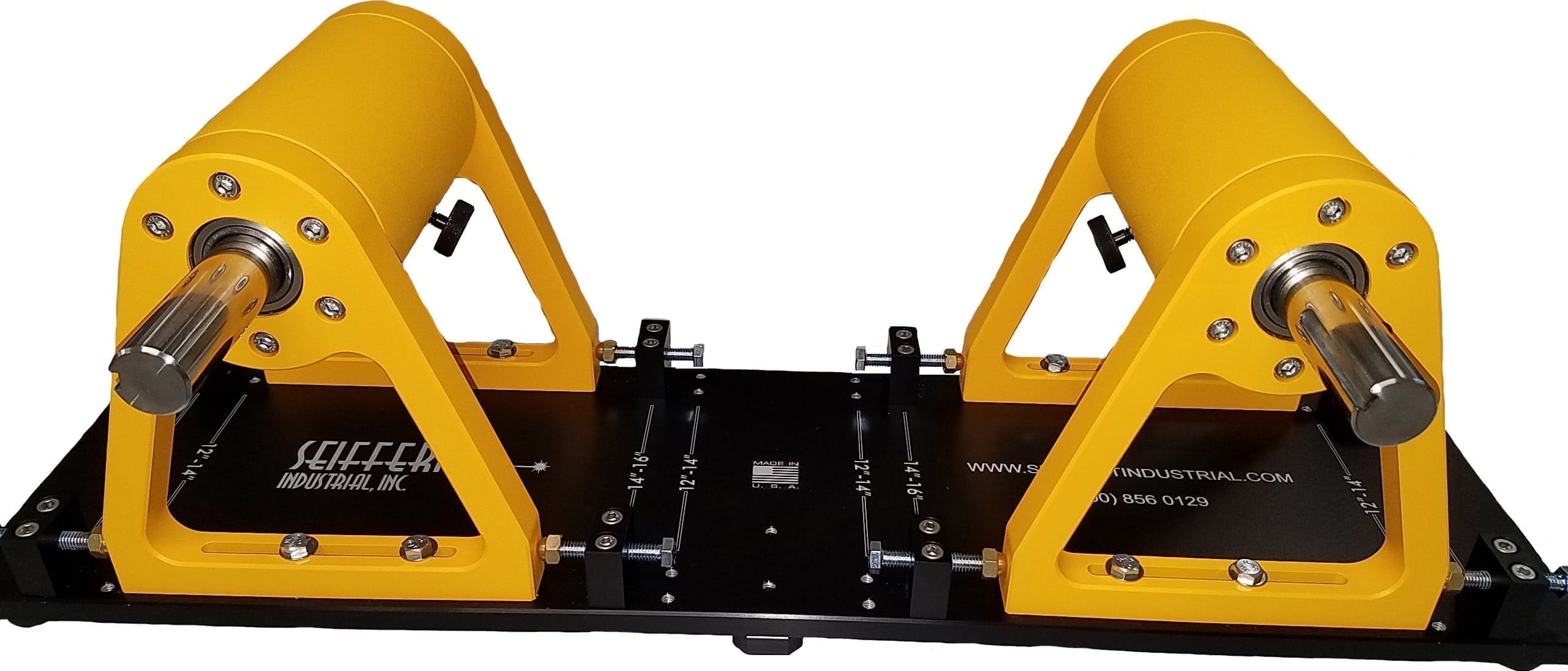

Used for laser pulley/belt alignment training.  This versatile simulator has two adjustable shaft assemblies enabling  parallel, axial and angular adjustments.  Adjustable friction of shaft rotation and adjustable shaft center to center for different belt sizes

Approximate size and weight, 28.0″ L x 8″ W x 10.0″ H, 28 lbs.

Note: Belts and pulleys are not included

Category:

Description

If you need a laser or sheave alignment system, our Belt Alignment Trainer will get the job done.

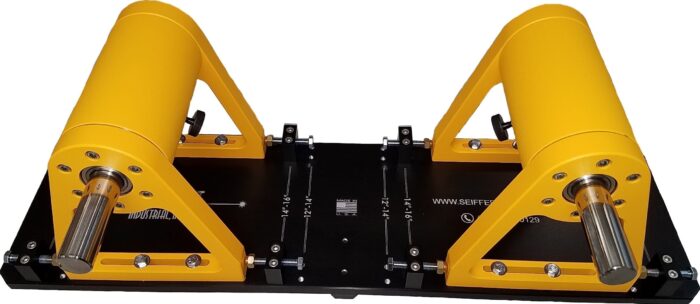

  • 8” wide x 28” long 10” tall
  • 25 lbs
  • Powder Coat Yellow Paint Finish
  • A-Frame assembly
  • Hard black anodize base

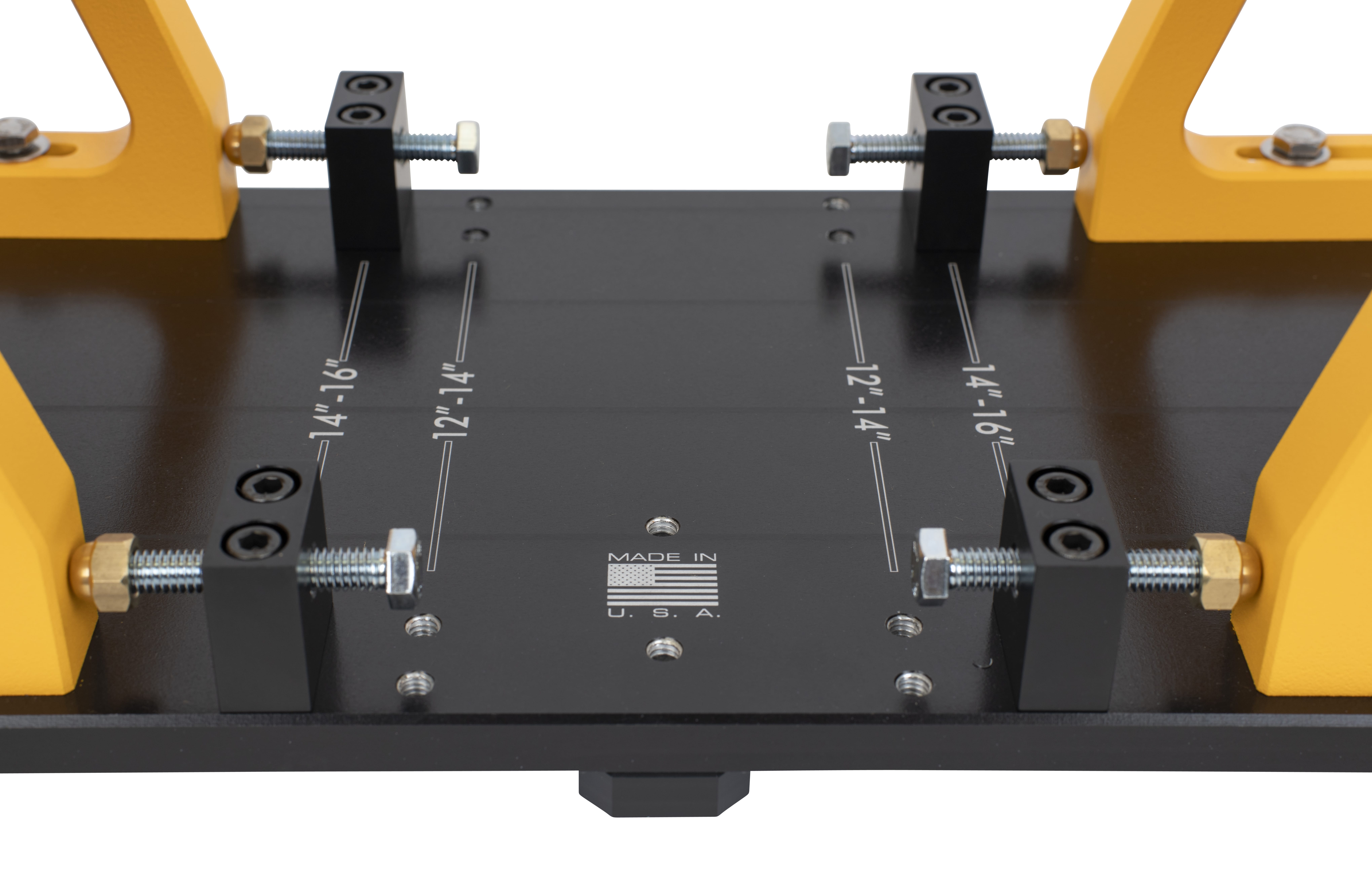

  • Adjustable shaft center to center for different belt sizes
  • Laser etched reference lines
  • 12”-14”, 14”-16”
  • 1” 304 stainless steel shaft with 0.250 x 2.0 key way
  • Jack screws
  • Rubber feet, and locking knob to fix shafts from rotating.

Note: Belts and pulleys not included

Belt Alignment Simulator Data Sheet
