RollCheck Green Laser Roll Alignment

If you need to quickly replace rolls in your processing plant, the SX-5150 RollCheck® Green is the perfect option.

Like several of our high-quality laser alignment tools, the RollCheck® Green takes advantage of green laser technology and is 10 times brighter than alignment systems that use standard red lasers.

In addition to a brighter laser system, this tool also makes use of reflected beam technology.

Description

SX-5150 RollCheck® Green Laser Roll Alignment System

With Patented Reflected Laser Beam Technology

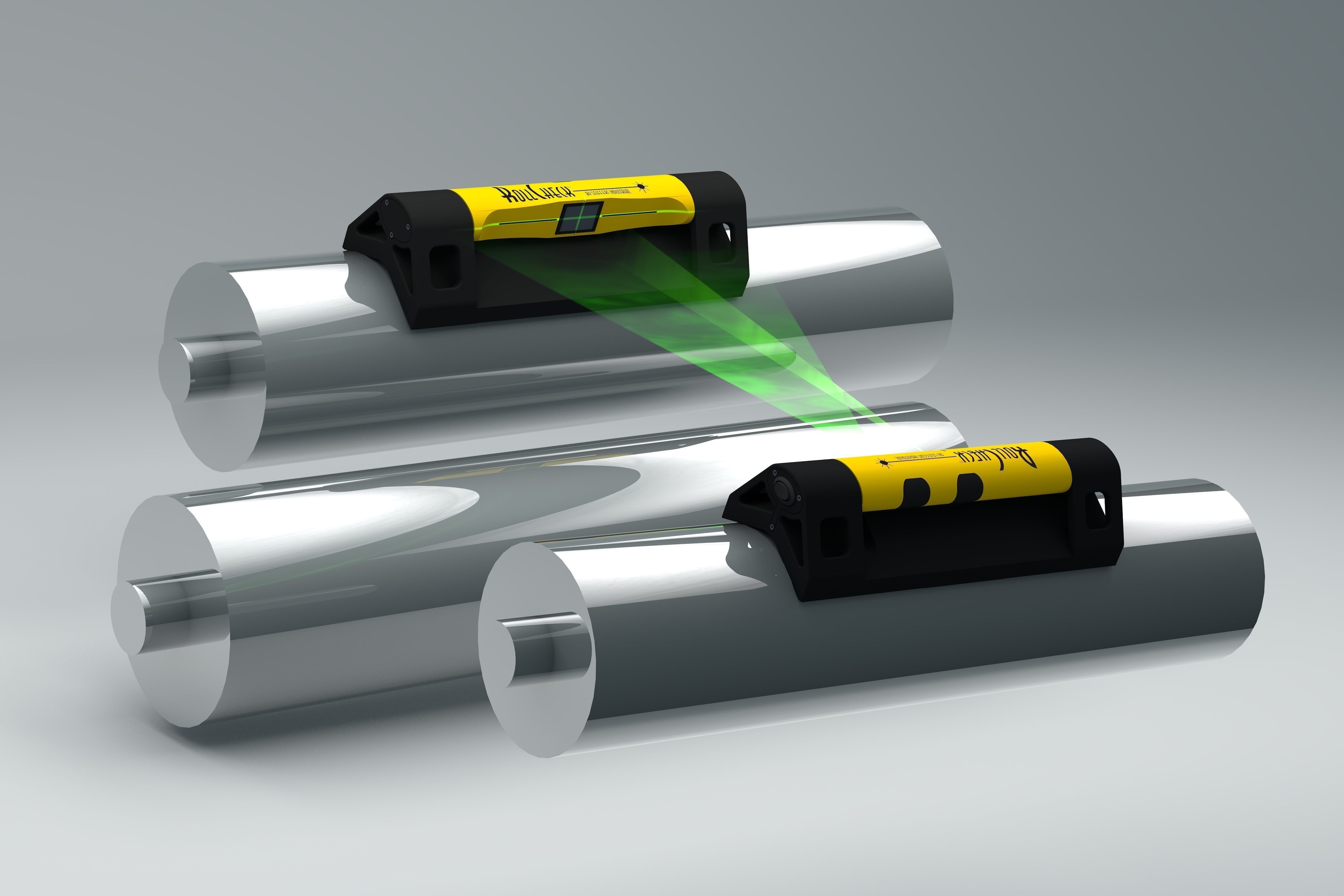

The RollCheck® Green projects laser lines from a reference roll onto a reflector unit, and back to the reference roll.

This allows you to see whether your rolls are parallel and because of the simplicity of this product, you will no longer have to go through trial and error tests in order to determine if your rolls have correct alignment.

Requiring little to no training, this system is easy to use and has a compact design, allowing you to store it in any space. The RollCheck® Green is useful for shots up to 10 feet long, and it can assist in increasing your production.

For more information about our laser alignment tools, contact Seiffert Industrial today.

Advantages and features are as follows:

  • Green is 10x brighter than red
  • Reduces down time and product waste due to misalignment of rolls
  • Increases production with proper alignment of rolls
  • Compact design, fits into small spaces
  • Fast and easy
  • No training required
  • One-person operation
  • Facilitates more frequent roll checks
  • Uses proven reflected laser beam technology
  • Pays for itself quickly
  • Used for shots up to 10 ft. or better

RollCheck Green Laser Roll Alignment Product Brochure

Additional information

Transmitter Model SX-5150T

Operating distance: Max. 10 ft. (3 m)
Accuracy: < 0.001”/ft. (< 0.03 mm/0.305 m)
Laser type: 2 ea. 532nm visible green laser
lines, 45˚ full angle
Laser power: < 1mW, Class 2
Safety precautions: Do not stare into beam
Laser compliance: CFR parts 1040.10 and 1040.11
Laser line thickness: 0.017” (0.4318 mm) at 9 ft. (2.8 m)
Laser calibration: Factory calibrated, check yearly
Environmental Water resistant, dust proof and
protection: impact resistant
Controls: Laser ON/OFF rocker switch
Battery type: High power polymer li-Ion rechargeable
battery. 3.7v 4000mAh
Operating time: 16 – 20 hours continuous at 72˚ F (22˚ C)
Temperature: Operating: 32˚ F (0˚ C) to 125˚ F (52˚ C)
Storage: -4˚ F (-20˚ C) to 140˚ F (60˚ C)
Frame: Rigid aluminum frame, powder-coat
paint finish
Laser housing: Aluminum, powder-coat paint finish
Mounting diameters: Roll diameters 1/2” (13mm) up to 8’ (2.5m)
Mounting straps: Set of 2 attachment straps included:
2 ea. 10” (254 mm) to 45” (1143 mm) adjustable bungee straps for diameters up to 15” (381 mm)
2 ea. 10 ft. (3 m) adjustable straps for diameters up to 38” (965 mm)
Weight: 4.8 lbs. (2.2 Kg)
Dimensions: 12” (279 mm) W x 4.25” (108 mm) D x 3”
(76 mm) H

Reflector Model SX-5150R

Reflector size: 1” (25 mm) x 1.4” (36 mm)
Frame: Rigid aluminum frame, powder-coat
paint finish
Reflector housing: Aluminum, powder-coat paint finish
Mounting straps: Set of 2 attachment straps included:
2 ea. 10” (254 mm) to 45” (1143 mm)
adjustable bungee straps for
diameters up to 15” (381 mm)
2 ea. 10 ft. (3 m) adjustable straps for
diameters up to 38” (965 mm)
Weight: 5.2 lbs. (2.4 Kg)
Dimensions: 12” (305 mm) W x 4.25” (108 mm) D x 3”
(76 mm) H

Carrying Case

Material: Black, high density hard polyethylene

Dimensions: 20.5” (521 mm) W x 16.75” (425 mm)
D x 8.5” (216 mm) H

Insert: Die cut foam

Carrying case weight: 14 lbs. (6.4 Kg)

Total system weight: 24 lbs. (10.9 Kg)
